Normally open, normally closed, freely switch
Special optical material, high light transmission, anti-glare
IP66 protection grade, excellent mechanical performance
| 型號 | 照片 | 感應距離 | 響應時間 | 檢測物體 | 工作電壓 | 輸出信號 | 輸出功能 | 出線方式 |
|---|---|---|---|---|---|---|---|---|

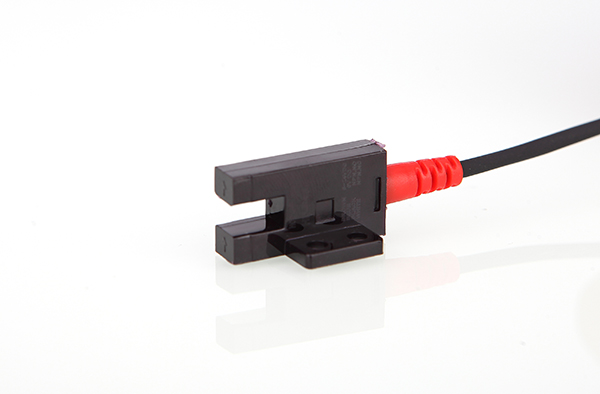

| HD-LN71 |  |
5mm | 0.3ms Max | 1mm | 10…30VDC | NPN.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
| HD-LP71 | |
5mm | 0.3ms Max | 1mm | 10…30VDC | PNP.NO.NC | light/dark operate | Φ2.6*2m,4-wire |

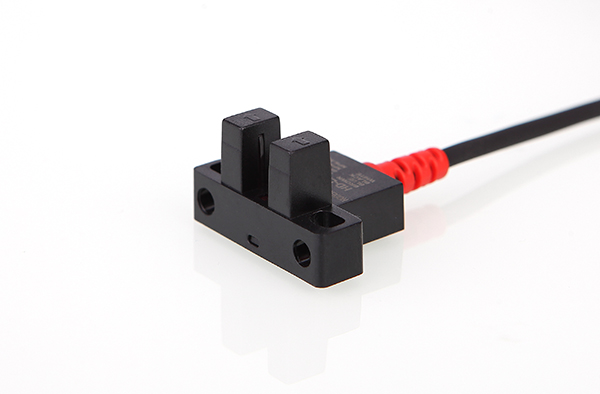

| HD-TN72 |  |
5mm | 0.3ms Max | 1mm | 10…30VDC | NPN.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
| HD-TP72 | |
5mm | 0.3ms Max | 1mm | 10…30VDC | PNP.NO.NC | light/dark operate | Φ2.6*2m,4-wire |

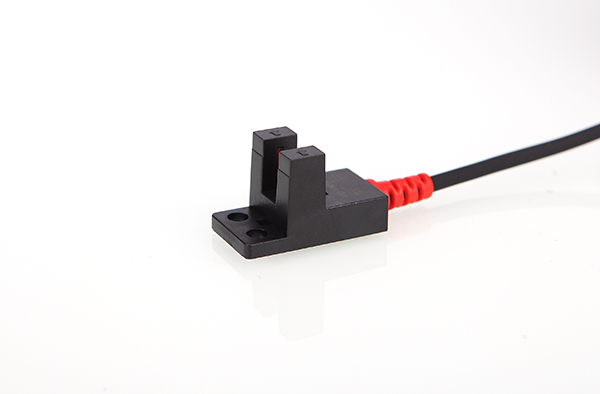

| HD-YN74 |  |
5mm | 0.3ms Max | 1mm | 10…30VDC | NPN.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
| HD-YP74 | |
5mm | 0.3ms Max | 1mm | 10…30VDC | PNP.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
| HD-FN76 |  |
5mm | 0.3ms Max | 1mm | 10…30VDC | NPN.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
| HD-FP76 |  |
5mm | 0.3ms Max | 1mm | 10…30VDC | PNP.NO.NC | light/dark operate | Φ2.6*2m,4-wire |
